2 months 6 days ago #107 by clarice.vassallo
Different locations: Data inputs & ouputs was created by clarice.vassallo
Hello,

I am running the program version 4.03a to calculate the emissions associated with biodiesel production from canola oil. The oil production (from canola farm to canola oil production) happened in Alberta and the fuel production in BC (canola oil to biodiesel). Therefore, I am running the program twice. Is the following the correct approach of getting the total emissions of the biodiesel production (from canola farm to fuel use):
1. Run 1 (Alberta): Canola to canola oil production emissions
Take results from Upstream Results HHV AB7 to AB18 (not taking emissions displaced from this run)
2. Run 2 (BC): Biodiesel Production (including transportation of canola oil to biodiesel facility) emissions
2.a. Take results from Upstream Results HHV AC7 to AC20.
Question:
Could you clarify if I should extract any AB column values from the AC7 to AC20 results, please? I can see that the AC results utilize the AB values, however, the canola oil production occurred in a different location and is being accounted in the first run.

2.b. Fuel Use:
from Exhaust Emissions F143

thank you,
kind regards,
Clarice

Please Log in or Create an account to join the conversation.

More
2 months 5 days ago #108 by rdo
This is, unfortunately, something that was never straightforward to do in 4.03a and prior. GHGenius 5.0 and subsequent releases have made it easier to accomplish.

The general strategy that I use when I have to do this are that all values are taken from AC, but very carefully. When I suggest to zero out energy inputs, I usually retain something like 0.001L of natural gas. The model does not always handle zero energy or zero transportation distances well.

The reason for this strategy is that it is one of the simplest ways of taking into account that oil into biodiesel is never one to one. You'll notice as you go through run 1 that most of the cells in column AC are some factor times the cells in AB.

Run 1 (Alberta): For this run, input all of your appropriate inputs for crushing and transportation. Then zero out all of the energy and chemical inputs for vegetable oil esterification, this is done on both Input and Alt Fuel Prod sheets. Enter the biodiesel yield on the Input sheet.

From this all of the fuel production value should just be crushing. You can take AC11:AC18 from this stage. You can ALSO take part of AC19. Zero out the part of the equation that is Coprods!J158.

Run 2 (BC): For this run, input all of your biodiesel production inputs and transportation values, but zero out the crushing energy and chemicals.

From this you can get the fuel dispensing, distribution and storage, and the esterification portion of fuel production. You will also need to take part of AC19, just the Coprods!J158 part that you zeroed out in the first run.

This is also the point where you would grab the exhaust emissions number.

At this point you can add everything together and get your final result.

Please Log in or Create an account to join the conversation.

More
2 months 2 days ago #112 by clarice.vassallo
Replied by clarice.vassallo on topic Different locations: Data inputs & ouputs
Thank you for your detailed response. I was able to run the program following your advice. However, I noticed that with this approach of using only AC column results in both runs I am getting significantly lower results than if I were to run my inputs entirely in one jurisdiction.

1. Running twice (AB+BC & zeroing accordingly and extracting results from AC carefully) = 6.35 gCO2e/MJ
2. Project inputs 2020 all in BC = 29.92 gCO2e/MJ
3. Project inputs 2020 all in AB = 21.56 gCO2e/MJ
4. Default GHGenius 2020 inputs all in BC = 7.18 gCO2e/MJ
5. Default GHGenius 2020 inputs all in AB = 14.83 gCO2e/MJ

Question:
Could you help me understand why in general the results are lower than when running in only one the jurisdiction? I would assume it should be somehow close to the values of one of the jurisdictions.

More info: I noticed that when running twice, as per the method described in the previous response, my AC column results in the canola oil (canola feedstock) are way lower than the AB results that I left behind (results for fuel production, feedstock, feedstock recovery and emissions displaced).

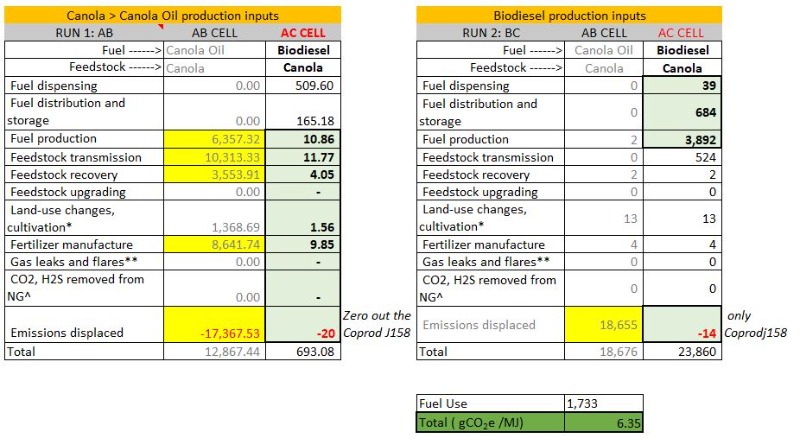

Highlighted in yellow the AB results that are higher than AC results to be used.

Thank you in advance,
kind regards,
Clarice
Attachments:

Please Log in or Create an account to join the conversation.

More
2 months 1 day ago - 2 months 1 day ago #113 by rdo
Don will add more, but a couple things jump out at me.

The first is to be careful with your units. I see in that image that fuel dispensing, distribution, and production appear to still be g/GJ while coproducts appear to be g/MJ for your second run. When doing a CI I generally don't do any conversion from g/GJ to g/MJ until the very end so the work is easier to go back and check in the model.

The other thing that jumps out at me is the fuel production in your oil production run. Every cell should have the same ratio of AC to AB. From this I would expect about 7.3g/MJ for oil production. My first guess as to what to check would be the chemical inputs for biodiesel production on Alt Fuel Prod.
Last edit: 2 months 1 day ago by rdo.

Please Log in or Create an account to join the conversation.

More
2 months 1 day ago #114 by doconnor
Replied by doconnor on topic Different locations: Data inputs & ouputs
For canola oil there are two main differences between regions.

The first is that the electricity CI can vary a large amount and the difference between BC and Alberta is about as large as you can get with the BC grid being dominated by hydropower and Alberta still having a predominately thermal grid with coal and natural gas.

The second is that N2O emissions from crop production are regionalized in GHGenius at the Provincial level. These emissions are much lower in Alberta than they are in BC due to the differences in climate (mostly the precipitation).

I hope this helps.

Don O'Connor

Please Log in or Create an account to join the conversation.

More
2 months 16 hours ago #115 by clarice.vassallo
Replied by clarice.vassallo on topic Different locations: Data inputs & ouputs
Thank you! This is very helpful.

Also, could you help me understand why I should use AC results (canola>biodiesel) in my first run instead of AB results (canola>canola oil) if what I am looking for in the first run is the canola oil production emissions?

thank you again,
kind regards,

Please Log in or Create an account to join the conversation.

More
1 month 4 weeks ago #116 by doconnor
Replied by doconnor on topic Different locations: Data inputs & ouputs
Column AB gives the results per GJ of canola oil. There is a small energy loss going from canola oil to canola biodiesel. When the biodiesel yield is entered into the model it will scale the emissions for canola oil production to give the results per GJ of biodiesel.

Regards
Don O'Connor

Please Log in or Create an account to join the conversation.

More
1 month 4 weeks ago #117 by clarice.vassallo
Replied by clarice.vassallo on topic Different locations: Data inputs & ouputs
Thank you very much! The biodiesel yield was the missing piece in the first run!

kind regards,
Clarice

Please Log in or Create an account to join the conversation.
